Casework engineered for laboratories with corrosive environmental conditions
Built entirely from white polypropylene and metal free hardware to ensure long-term performance in harsh lab environments.
Metal-free hinges and fasteners prevent trace elements from leaching into sensitive samples.
Engineered by experts to create a smooth, handle-free surface that enhances safety, cleanliness, and workspace efficiency.
We offer a full line of standard polypropylene casework with a variety of feature combinations available. We also have the ability to customize our casework to meet specific user needs, such as custom dimensions, feature combinations, configurations, etc.

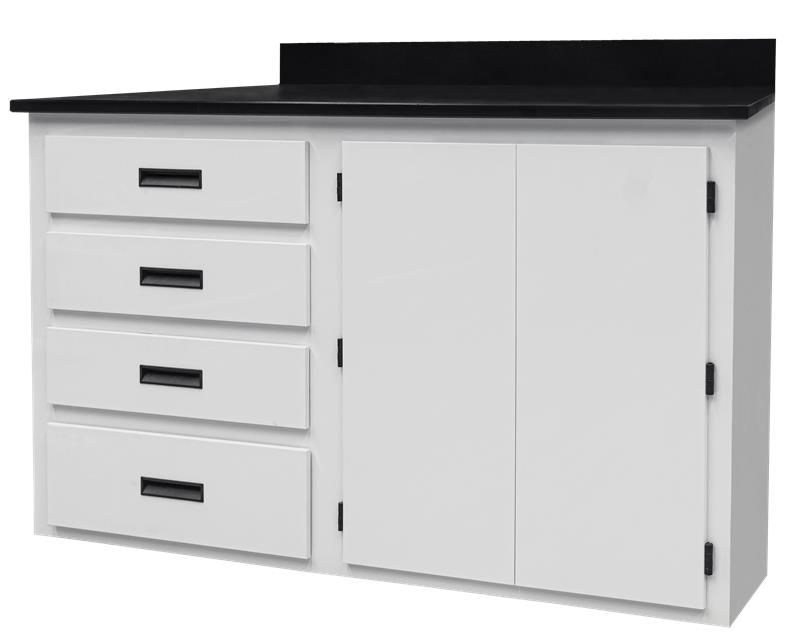

Our solid polypropylene base cabinets are built for performance and designed to fit the needs of any laboratory. Available in a 22" depth with standard 30" sitting or 36" standing heights, they combine durability with flexible design. Choose from configurations that include doors, drawers, or adjustable shelving to create a layout that works best for your space. Each cabinet features TFI Inline Design’s integral hinge system for smooth, corrosion-free operation. Custom sizes are also available to meet the specific needs of architects, engineers, and end users.

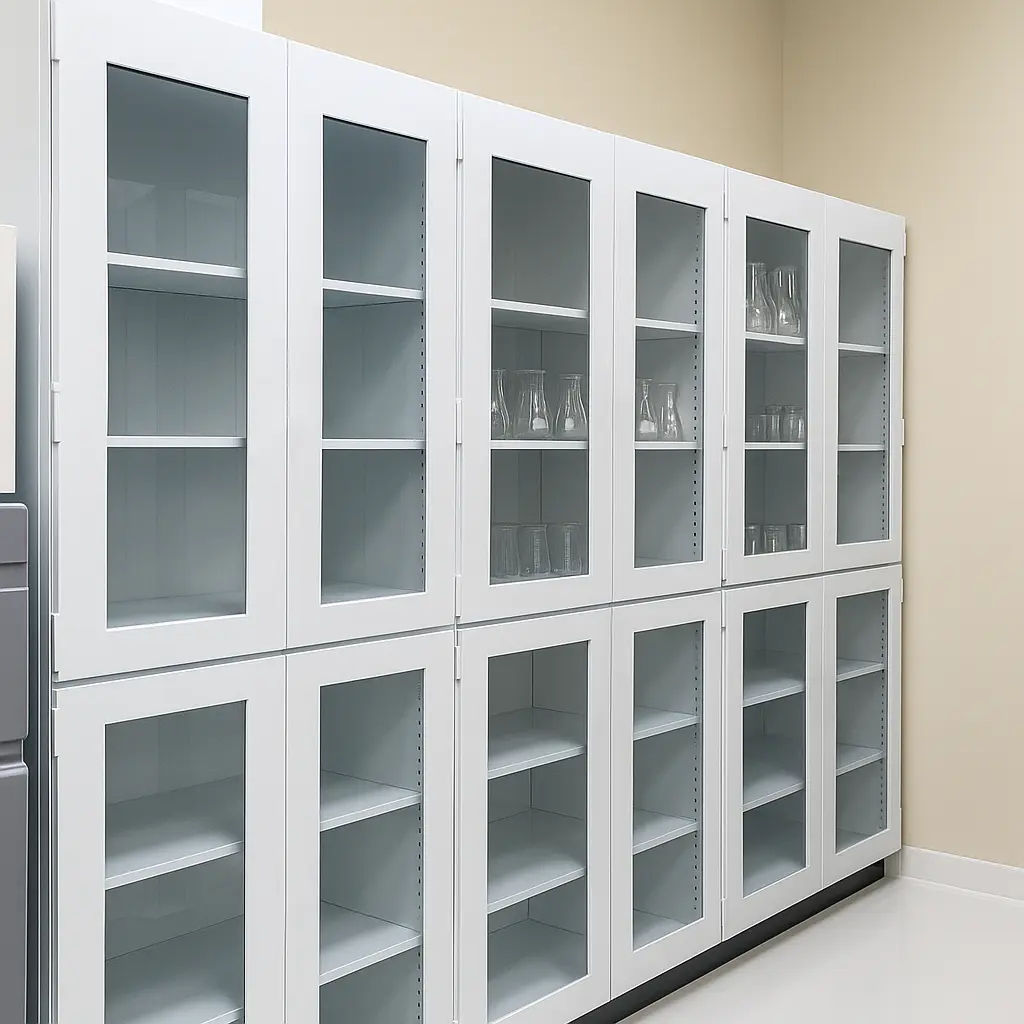

Our tall storage cabinets are constructed entirely from durable polypropylene, ensuring long-lasting performance in demanding lab environments. Each cabinet features a standard 22" depth and comes in a range of widths and door configurations. Inside, a fixed center shelf and four adjustable shelves provide flexible storage for various lab supplies. Door options include glass or polycarbonate panels for clear visibility. All hardware is metal-free, and doors feature TFI’s integral hinge design for smooth operation. Custom sizes and configurations are available.

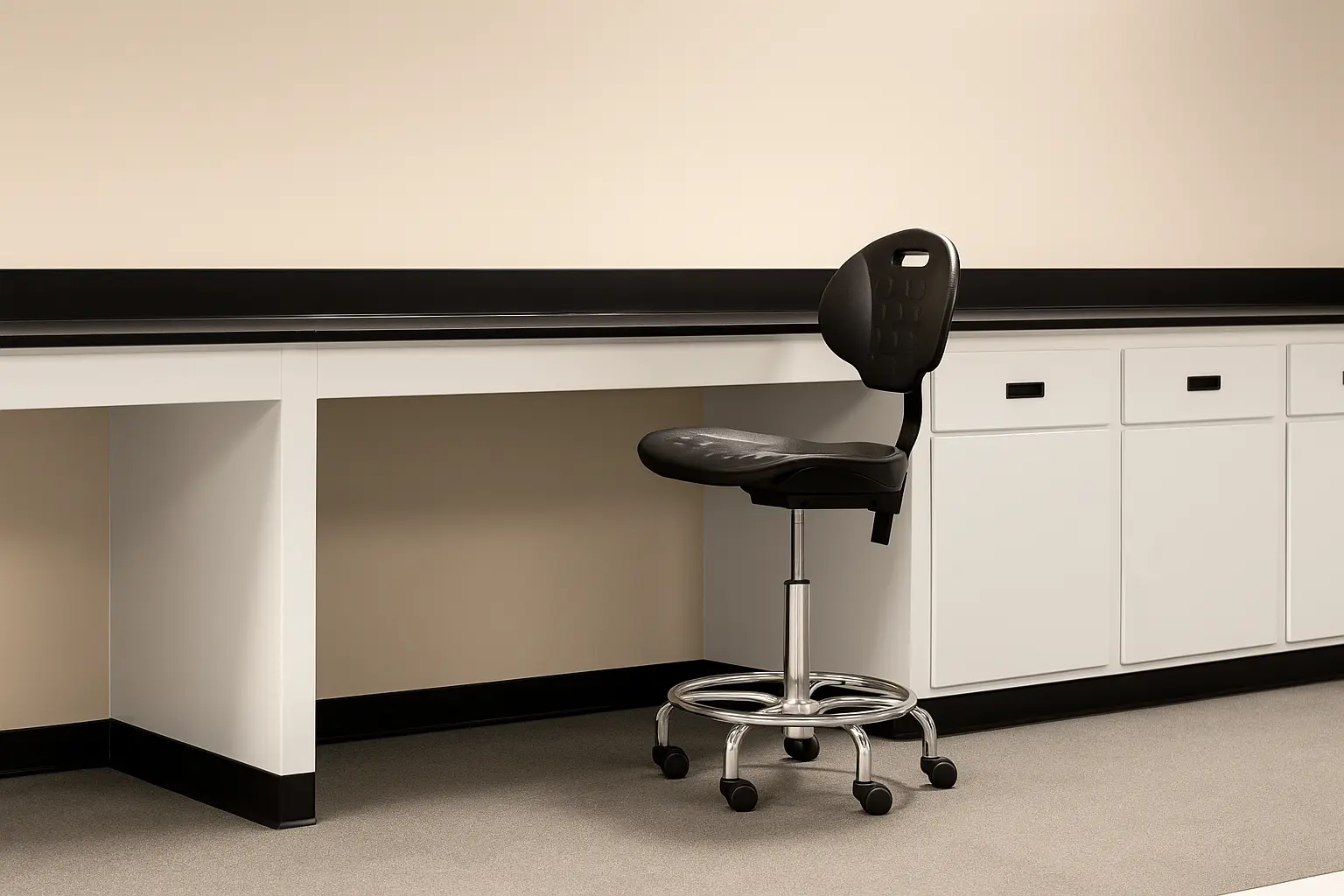

We offer a complete line of file cabinets, filler panels, and knee space aprons, all manufactured from seam-welded polypropylene for lasting strength and chemical resistance. Optional removable back panels provide easy access for maintenance or customization. Knee spaces are available in standard heights of 4" for units without drawers and 6" for those with drawers, all with a 22" depth. End panels are offered in both 22" and 30" depths to finish exposed sides and eliminate the need for filler panels. Each piece is designed for seamless integration and consistent performance across any lab layout.
Our wall cabinets are available in a variety of lengths, heights, and door configurations, all with a standard 13" depth. Each cabinet includes two adjustable shelves and metal-free hardware for long-lasting, corrosion-resistant performance. Door options include solid polypropylene, clear polycarbonate, or safety glass with hinged or sliding styles. An adjustable polypropylene shelf is included, with additional shelves available upon request. Custom sizes and configurations can also be tailored to meet the specific needs of your laboratory layout.
Please make a selection above to see part numbers and dimensions for base cabinets.
| P/N | Width | Height | Depth | Depth Inside |
|---|---|---|---|---|
| ID-3S-1830-BC | 18" | 29" | 22" | 12.25" |
| ID-3S-2430-BC | 24" | 29" | 22" | 18.25" |
| ID-3S-3030-BC | 29" | 29" | 22" | 24.25" |
| ID-3S-3630-BC | 36" | 29" | 22" | 30.25" |
| ID-3S-1835-BC | 18" | 35" | 22" | 12.25" |
| ID-3S-2435-BC | 24" | 35" | 22" | 18.25" |
| ID-3S-3035-BC | 29" | 35" | 22" | 24.25" |
| ID-3S-3635-BC | 36" | 35" | 22" | 30.25" |
| P/N | Width | Height | Depth | Depth Inside |
|---|---|---|---|---|
| ID-4S-1830-BC | 18" | 29" | 22" | 12.25" |
| ID-4S-2430-BC | 24" | 29" | 22" | 18.25" |
| ID-4S-3030-BC | 29" | 29" | 22" | 24.25" |
| ID-4S-3630-BC | 36" | 29" | 22" | 30.25" |
| ID-4S-1835-BC | 18" | 35" | 22" | 12.25" |
| ID-4S-2435-BC | 24" | 35" | 22" | 18.25" |
| ID-4S-3035-BC | 29" | 35" | 22" | 24.25" |
| ID-4S-3635-BC | 36" | 35" | 22" | 30.25" |
| P/N | Width | Height | Depth | Depth Inside |
|---|---|---|---|---|
| ID-5S-1830-BC | 18" | 29" | 22" | 12.25" |
| ID-5S-2430-BC | 24" | 29" | 22" | 18.25" |
| ID-5S-3030-BC | 29" | 29" | 22" | 24.25" |
| ID-5S-3630-BC | 36" | 29" | 22" | 30.25" |
| ID-5S-1835-BC | 18" | 35" | 22" | 12.25" |
| ID-5S-2435-BC | 24" | 35" | 22" | 18.25" |
| ID-5S-3035-BC | 29" | 35" | 22" | 24.25" |
| ID-5S-3635-BC | 36" | 35" | 22" | 30.25" |
| P/N | Width | Height | Depth | Depth Inside |
|---|---|---|---|---|
| ID-6S-1830-BC | 18" | 29" | 22" | 12.25" |
| ID-6S-2430-BC | 24" | 29" | 22" | 18.25" |
| ID-6S-3030-BC | 29" | 29" | 22" | 24.25" |
| ID-6S-3630-BC | 36" | 29" | 22" | 30.25" |
| ID-6S-1835-BC | 18" | 35" | 22" | 12.25" |
| ID-6S-2435-BC | 24" | 35" | 22" | 18.25" |
| ID-6S-3035-BC | 29" | 35" | 22" | 24.25" |
| ID-6S-3635-BC | 36" | 35" | 22" | 30.25" |
| P/N | Width | Height | Depth | Depth Inside |
|---|---|---|---|---|
| ID-6D-3635-BC | 36" | 35" | 22" | 12.75" |
| ID-6D-4235-BC | 42" | 35" | 22" | 15.75" |
| ID-6D-4835-BC | 48" | 35" | 22" | 18.75" |
| P/N | Width | Height | Depth | Depth Inside |
|---|---|---|---|---|
| ID-8D-3635-BC | 36" | 35" | 22" | 12.75" |
| ID-8D-4235-BC | 42" | 35" | 22" | 15.75" |
| ID-8D-4835-BC | 48" | 35" | 22" | 18.75" |
| P/N | Width | Height | Depth | Depth Inside (A) | Depth Inside (B) |
|---|---|---|---|---|---|
| ID-6C-3635-BC | 36" | 35" | 22" | 12.75" | 30.25" |
| ID-6C-4235-BC | 42" | 35" | 22" | 15.75" | 36.25" |
| ID-6C-4835-BC | 48" | 35" | 22" | 18.75" | 42.25" |
| P/N | Width | Height | Depth | Depth Inside (A) | Depth Inside (B) |
|---|---|---|---|---|---|
| ID-7C-3635-BC | 36" | 35" | 22" | 12.75" | 30.25" |
| ID-7C-4235-BC | 42" | 35" | 22" | 15.75" | 36.25" |
| ID-7C-4835-BC | 48" | 35" | 22" | 18.75" | 42.25" |
| P/N | Width | Height | Depth | Depth Inside (A) | Depth Inside (B) |
|---|---|---|---|---|---|
| ID-8C-3635-BC | 36" | 35" | 22" | 12.75" | 30.25" |
| ID-8C-4235-BC | 42" | 35" | 22" | 15.75" | 36.25" |
| ID-8C-4835-BC | 48" | 35" | 22" | 18.75" | 42.25" |
| P/N | Width | Height | Depth | Depth Inside (A) |
|---|---|---|---|---|
| ID-11-1830-BC | 18" | 29" | 22" | 12.25" |
| ID-11-2430-BC | 24" | 29" | 22" | 18.25" |
| ID-11-1835-BC | 18" | 35" | 22" | 12.25" |
| ID-11-2435-BC | 24" | 35" | 22" | 18.25" |
| P/N | Width | Height | Depth | Depth Inside (A) |
|---|---|---|---|---|
| ID-22-3630-BC | 36" | 29" | 22" | 12.75" |
| ID-22-4230-BC | 42" | 29" | 22" | 15.75" |
| ID-22-4830-BC | 48" | 29" | 22" | 18.75" |
| ID-22-3635-BC | 36" | 35" | 22" | 12.75" |
| ID-22-4235-BC | 42" | 35" | 22" | 15.75" |
| ID-22-4835-BC | 48" | 35" | 22" | 18.75" |
| P/N | Width | Height | Depth |
|---|---|---|---|
| ID-12-3030-BC | 29" | 29" | 22" |
| ID-12-3630-BC | 36" | 29" | 22" |
| ID-12-4230-BC | 42" | 29" | 22" |
| ID-12-4830-BC | 48" | 29" | 22" |
| ID-12-3035-BC | 29" | 35" | 22" |
| ID-12-3635-BC | 36" | 35" | 22" |
| ID-12-4235-BC | 42" | 35" | 22" |
| ID-12-4835-BC | 48" | 35" | 22" |
| P/N | Width | Height | Depth | Depth Inside (A) |
|---|---|---|---|---|
| ID-3S-1830-BC-S | 18" | 30" | 22" | 12.25" |
| ID-3S-2430-BC-S | 24" | 30" | 22" | 18.25" |
| ID-3S-1835-BC-S | 18" | 36" | 22" | 12.25" |
| ID-3S-2435-BC-S | 24" | 36" | 22" | 18.25" |
| P/N | Width | Height | Depth | Depth Inside (A) | Depth Height (B) |
|---|---|---|---|---|---|
| ID-01-1830-BC | 18" | 29" | 22" | 15" | 23.5" |
| ID-01-2430-BC | 24" | 29" | 22" | 21" | 23.5" |
| ID-01-1835-BC | 18" | 35" | 22" | 15" | 29.5" |
| ID-01-2435-BC | 24" | 35" | 22" | 21" | 29.5" |
| P/N | Width | Height | Depth | Depth Inside (A) | Depth Height (B) |
|---|---|---|---|---|---|
| ID-02-3030-BC | 29" | 29" | 22" | 12.5" | 23.5" |
| ID-02-3630-BC | 36" | 29" | 22" | 15.5" | 23.5" |
| ID-02-4230-BC | 42" | 29" | 22" | 18.5" | 23.5" |
| ID-02-4830-BC | 48" | 29" | 22" | 21.5" | 23.5" |
| ID-02-3035-BC | 29" | 35" | 22" | 12.5" | 29.5" |
| ID-02-3635-BC | 36" | 35" | 22" | 15.5" | 29.5" |
| ID-02-4235-BC | 42" | 35" | 22" | 18.5" | 29.5" |
| ID-02-4835-BC | 48" | 35" | 22" | 21.5" | 29.5" |
| P/N | Width | Height | Depth | Depth Inside (A) | Depth Height (B) |
|---|---|---|---|---|---|
| ID-02-3030-SC | 29" | 29" | 22" | 12.5" | 16" |
| ID-02-3630-SC | 36" | 29" | 22" | 15.5" | 16" |
| ID-02-4230-SC | 42" | 29" | 22" | 18.5" | 16" |
| ID-02-4830-SC | 48" | 29" | 22" | 21.5" | 16" |
| ID-02-3035-SC | 29" | 35" | 22" | 12.5" | 22" |
| ID-02-3635-SC | 36" | 35" | 22" | 15.5" | 22" |
| ID-02-4235-SC | 42" | 35" | 22" | 18.5" | 22" |
| ID-02-4835-SC | 48" | 35" | 22" | 21.5" | 22" |
| P/N | Width | Height | Depth | Depth Height |
|---|---|---|---|---|
| ID-01-3230-CBC | 32" | 29" | 22" | 23.5" |
| ID-01-3235-CBC | 32" | 35" | 22" | 23.5" |
| P/N | Width | Height | Depth | Depth Inside (A) | Depth Height (B) |
|---|---|---|---|---|---|
| ID-02-5330-EBC | 53" | 29" | 22" | 12.5" | 23.5" |
| ID-02-5930-EBC | 59" | 29" | 22" | 15.5" | 23.5" |
| ID-02-5335-EBC | 53" | 35" | 22" | 12.5" | 29.5" |
| ID-02-5935-EBC | 59" | 35" | 22" | 15.5" | 29.5" |
Please make a selection above to see part numbers and dimensions for tall cabinets.
| P/N | Width | Height | Depth | Depth Width | Depth Height |
|---|---|---|---|---|---|
| ID-04-3084-TC | 29" | 84" | 22" | 12.5" | 37.75" |
| ID-04-3684-TC | 36" | 84" | 22" | 15.5" | 37.75" |
| ID-04-4284-TC | 42" | 84" | 22" | 18.5" | 37.75" |
| ID-04-4884-TC | 48" | 84" | 22" | 21.5" | 37.75" |
| P/N | Width | Height | Depth | Depth Width | Depth Height |
|---|---|---|---|---|---|
| ID-02-3084-TC | 29" | 84" | 22" | 12.5" | 76.5" |
| ID-02-3684-TC | 36" | 84" | 22" | 15.5" | 76.5" |
| ID-02-4284-TC | 42" | 84" | 22" | 18.5" | 76.5" |
| ID-02-4884-TC | 48" | 84" | 22" | 21.5" | 76.5" |
| P/N | Width | Height | Depth | Depth Width | Depth Height |
|---|---|---|---|---|---|
| ID-04-3084-TC-GL | 29" | 84" | 22" | 12.5" | 37.75" |
| ID-04-3684-TC-GL | 36" | 84" | 22" | 15.5" | 37.75" |
| ID-04-4284-TC-GL | 42" | 84" | 22" | 18.5" | 37.75" |
| ID-04-4884-TC-GL | 48" | 84" | 22" | 21.5" | 37.75" |
Please make a selection above to see part numbers and dimensions for knee spaces.
| P/N | Width | Height | Depth |
|---|---|---|---|
| ID-00-3030-KS | 29" | 4" | 22" |
| ID-00-3630-KS | 36" | 4" | 22" |
| ID-00-4230-KS | 42" | 4" | 22" |
| ID-00-4830-KS | 48" | 4" | 22" |
| ID-00-2435-KS | 24" | 4" | 22" |
| ID-00-3035-KS | 29" | 4" | 22" |
| ID-00-3635-KS | 36" | 4" | 22" |
| ID-00-4235-KS | 42" | 4" | 22" |
| ID-00-4835-KS | 48" | 4" | 22" |
| P/N | Width | Height | Depth |
|---|---|---|---|
| ID-00-0330-22-KEP | 3" | 29" | 22" |
| ID-00-0335-22-KEP | 3" | 35" | 22" |
| ID-00-0330-30-KEP | 3" | 29" | 30" |
| ID-00-0335-30-KEP | 3" | 35" | 30" |
| P/N | Width | Height | Depth |
|---|---|---|---|
| ID-10-2430-KS | 24" | 6" | 22" |
| ID-10-3030-KS | 29" | 6" | 22" |
| ID-10-3630-KS | 36" | 6" | 22" |
| ID-10-2435-KS | 24" | 6" | 22" |
| ID-10-3035-KS | 29" | 6" | 22" |
| ID-10-3635-KS | 36" | 6" | 22" |
| P/N | Width | Height | Depth |
|---|---|---|---|
| ID-20-4830-KS | 48" | 6" | 22" |
| ID-20-6030-KS | 60" | 6" | 22" |
| ID-20-7230-KS | 72" | 6" | 22" |
| ID-20-4835-KS | 48" | 6" | 22" |
| ID-20-6035-KS | 60" | 6" | 22" |
| ID-20-7235-KS | 72" | 6" | 22" |
| P/N | Width | Height | Depth | Depth Inside |
|---|---|---|---|---|
| ID-2S-1530-FC | 15" | 29" | 22" | 10.25" |
| ID-2S-1830-FC | 18" | 29" | 22" | 13.25" |
| ID-2S-2430-FC | 15" | 29" | 22" | 19.25" |
| P/N | Width | Height |
|---|---|---|
| ID-00-XX30-FFP | 1" - 48" | 29" |
| ID-00-XX35-FFP | 1" - 48" | 35" |
| P/N | Width | Height |
|---|---|---|
| ID-00-XX30-SFP | 1" - 48" | 29" |
| ID-00-XX35-SFP | 1" - 48" | 35" |
| P/N | Width | Height |
|---|---|---|
| ID-00-XX30-CFP | 1" - 12" | 29" |
| ID-00-XX35-CFP | 1" - 12" | 35" |
| P/N | Width | Height |
|---|---|---|
| ID-00-XX30-CFFP | 1" - 12" | 29" |
| ID-00-XX35-CFFP | 1" - 12" | 35" |
Please make a selection above to see part numbers and dimensions for wall cabinets.
| P/N | Width | Height | Depth | Depth Width | Depth Height | Shelves |
|---|---|---|---|---|---|---|
| ID-1-1824-WC | 18" | 24" | 13" | 15" | 20.5" | 1 |
| ID-1-2424-WC | 24" | 24" | 13" | 21" | 20.5" | 1 |
| ID-1-1830-WC | 18" | 29" | 13" | 15" | 26.5" | 2 |
| ID-1-2430-WC | 24" | 29" | 13" | 21" | 26.5" | 2 |
| P/N | Width | Height | Depth | Depth Width | Depth Height | Shelves |
|---|---|---|---|---|---|---|
| ID-2-3024-WC | 29" | 24" | 13" | 12.5" | 20.5" | 1 |
| ID-2-3624-WC | 36" | 24" | 13" | 15.5" | 20.5" | 1 |
| ID-2-4224-WC | 42" | 24" | 13" | 18.5" | 20.5" | 1 |
| ID-2-4824-WC | 48" | 24" | 13" | 21.5" | 20.5" | 1 |
| ID-2-3030-WC | 29" | 29" | 13" | 12.5" | 26.5" | 2 |
| ID-2-3630-WC | 36" | 29" | 13" | 15.5" | 26.5" | 2 |
| ID-2-4230-WC | 42" | 29" | 13" | 18.5" | 26.5" | 2 |
| ID-2-4830-WC | 48" | 29" | 13" | 21.5" | 26.5" | 2 |

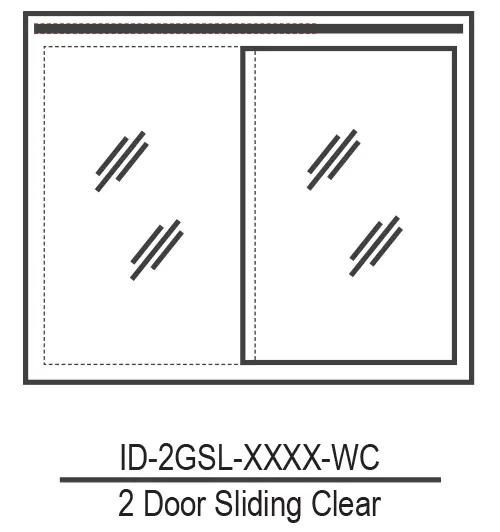

| P/N | Width | Height | Depth | Depth Width | Depth Height | Shelves |
|---|---|---|---|---|---|---|
| ID-2GSL-3024-WC | 29" | 24" | 13" | 13.5" | 19.5" | 1 |
| ID-2GSL-3624-WC | 36" | 24" | 13" | 16.5" | 19.5" | 1 |
| ID-2GSL-4224-WC | 42" | 24" | 13" | 19.5" | 19.5" | 1 |
| ID-2GSL-4824-WC | 48" | 24" | 13" | 22.5" | 19.5" | 1 |
| ID-2GSL-3030-WC | 29" | 29" | 13" | 13.5" | 25.5" | 2 |
| ID-2GSL-3630-WC | 36" | 29" | 13" | 16.5" | 25.5" | 2 |
| ID-2GSL-4230-WC | 42" | 29" | 13" | 19.5" | 25.5" | 2 |
| ID-2GSL-4830-WC | 48" | 29" | 13" | 22.5" | 25.5" | 2 |
| P/N | Width | Height | Depth | Depth Width | Depth Height | Shelves |
|---|---|---|---|---|---|---|
| ID-2SL-3024-WC | 29" | 24" | 13" | 13.5" | 19.5" | 1 |
| ID-2SL-3624-WC | 36" | 24" | 13" | 16.5" | 19.5" | 1 |
| ID-2SL-4224-WC | 42" | 24" | 13" | 19.5" | 19.5" | 1 |
| ID-2SL-4824-WC | 48" | 24" | 13" | 22.5" | 19.5" | 1 |
| ID-2SL-3030-WC | 29" | 29" | 13" | 13.5" | 25.5" | 2 |
| ID-2SL-3630-WC | 36" | 29" | 13" | 16.5" | 25.5" | 2 |
| ID-2SL-4230-WC | 42" | 29" | 13" | 19.5" | 25.5" | 2 |
| ID-2SL-4830-WC | 48" | 29" | 13" | 22.5" | 25.5" | 2 |
| P/N | Width | Height | Depth | Depth Width | Depth Height | Shelves |
|---|---|---|---|---|---|---|
| ID-2GL-3024-WC | 29" | 24" | 13" | 12.5" | 20.5" | 1 |
| ID-2GL-3624-WC | 36" | 24" | 13" | 15.5" | 20.5" | 1 |
| ID-2GL-4224-WC | 42" | 24" | 13" | 18.5" | 20.5" | 1 |
| ID-2GL-4824-WC | 48" | 24" | 13" | 21.5" | 20.5" | 1 |
| ID-2GL-3030-WC | 29" | 29" | 13" | 12.5" | 26.5" | 2 |
| ID-2GL-3630-WC | 36" | 29" | 13" | 15.5" | 26.5" | 2 |
| ID-2GL-4230-WC | 42" | 29" | 13" | 18.5" | 26.5" | 2 |
| ID-2GL-4830-WC | 48" | 29" | 13" | 21.5" | 26.5" | 2 |
| P/N | Width | Height | Depth | Depth Width | Depth Height | Shelves |
|---|---|---|---|---|---|---|
| ID-1GL-1824-WC | 18" | 24" | 13" | 15" | 20.5" | 1 |
| ID-1GL-2424-WC | 24" | 24" | 13" | 21" | 20.5" | 1 |
| ID-1GL-1830-WC | 18" | 29" | 13" | 15" | 26.5" | 2 |
| ID-1GL-2430-WC | 24" | 29" | 13" | 21" | 26.5" | 2 |
| P/N | Width | Height | Depth | Depth Width | Depth Height | Shelves |
|---|---|---|---|---|---|---|
| ID-02-3724-EWC | 37" | 24" | 13" | 9.5" | 20.5" | 1 |
| ID-02-4924-EWC | 49" | 24" | 13" | 9.5" | 20.5" | 1 |
| ID-02-3730-EWC | 37" | 29" | 13" | 15.5" | 26.5" | 2 |
| ID-02-4930-EWC | 49" | 29" | 13" | 15.5" | 26.5" | 2 |
| P/N | Width | Height | Depth Height | Shelves |
|---|---|---|---|---|
| ID-1-2724-CWC | 27" | 24" | 20.5" | 1 |
| ID-1-2730-CWC | 27" | 29" | 26.5" | 2 |
